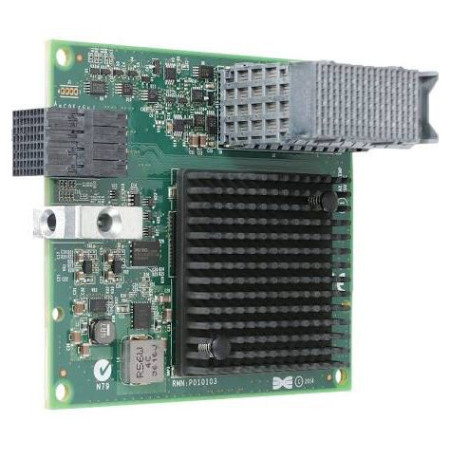

[7ZT7A00520] ThinkSystem QLogic QML2692 Mezz 16Gb 2-Port Fibre Channel Adapter

Specifications

Networking
Ports 16Gb Fibre Channel x 2
Connectivity Technology Wired
Data Link Protocol 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel
Fibre Channel FC-GS-2, FC-GS-3, FC-Tape, FCP-2, FC-PI-5, SCSI-FCP
Data Transfer Rate 14.025 Gbps
Features Forward Error Correction (FEC), Extended Message-Signaled Interrupts (MSI-X), Fabric-Assigned port WorldWide Name (FA-WWN), Fabric-ased Boot LUN Discovery (F-BLD), Class-specific Control (CS_CTL), Read Diagnostic Parameters (RDP)

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Host bus adapter
Form Factor Plug-in card
Interface (Bus) Type Mezzanine LAN-on-Motherboard Generation 2 (ML2)
