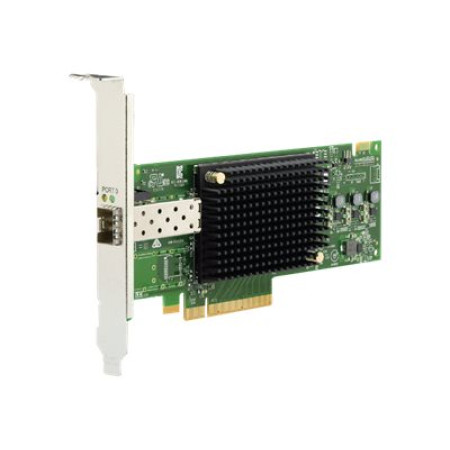

[7ZT7A00517] ThinkSystem Emulex LPe32000-M2-L PCIe 32Gb 1-Port SFP+ Fibre Channel Adapter

Specifications

Processor / Memory
Processor 1 x Emulex XE501

Miscellaneous
Included Accessories Low-profile bracket, full-height bracket, 32Gb SFP+ SW transceiver
Compliant Standards TUV, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, BSMI Class A, Directive 2011/65/EU, VCCI Class A, MSIP Class A, China RoHS, RCM, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, EN 55032:2012, EN60950-1+A11+A1+A12+A2, EN55024:2010
Networking
Ports 32Gb Fibre Channel SFP+ x 1
Connectivity Technology Wired
Data Link Protocol 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel, 32Gb Fibre Channel
Fibre Channel FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4, SSC-3
Performance Maximum IOPS: 1600000
Features Quality of Service (QoS), Forward Error Correction (FEC), Extended Message-Signaled Interrupts (MSI-X), GreenState

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Host bus adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Expansion / Connectivity
Interfaces 1 x 32Gb Fibre Channel - LC
