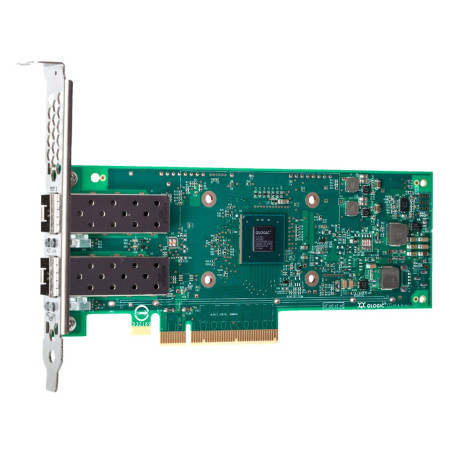

[4XC7A08228] ThinkSystem QLogic QL41262 PCIe 25Gb 2-Port SFP28 Ethernet Adapter

Specifications

Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Compliant Standards TUV, EN55024, CB, ICES-003 Class A, FCC, CSA C22.2, RoHS, IEC 60950-1, BSMI CNS 13438, AS/NZS, VCCI Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, EN 55032, CB 60950-1
Networking
Ports 25 Gigabit SFP28 x 2
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Capacity Jumbo frame size: 9600
Features Wake on LAN (WOL), PXE support, Large Send Offload (LSO), Giant Send Offload (GSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Unified Fabric Port (UFP), Virtual Extensible LAN (VXLAN), Receive Side Coalescing (RSC), User Datagram Protocol (UDP), iWARP support, Network Partitioning (NPAR), Data Plane Development Kit (DPDK), iSCSI Extensions over RDMA (iSER), Interrupt coalescing
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg, IEEE 802.3by
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 80% (non-condensing)

General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Expansion / Connectivity
Interfaces 2 x 25Gb Ethernet - SFP28
