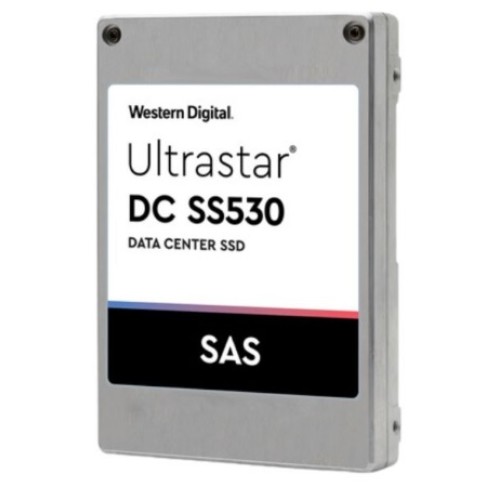

Dell YW17N / WD / HGST Ultrastar 0B40553 / WUSTR1538ASS200 3.84TB 2.5 inch SFF 12Gbps DC SS530 Read Intensive SAS SSD
SE Model # : 0B40553
Alt Model # : WUSTR1538ASS200
Base Model : Ultrastar SS200
Interface : SAS 12Gb/s
Form Factor : 2.5-inch
Capacity : 3.84TB
Endurance (Drive writes per day) : 1
Sequential Read (max MB/s, 128KiB) : 2,150
Sequential Write (max MB/s, 128KiB) : 2,120
Random Read (max IOPSm 4KiB) : 440,000
Random Write (max IOPS 4KiB) : 100,000
Mixed Random Read/Write (max IOPS 70% R / 30%W 4KiB) : 190,000
Error Rate in bits read : <1 in 10E17
MTBF : 2.5M hours
Annual failure rate (AFR) : 0.35%
Requirement (DC +/- 5%) : 5V & 12V
Operating (W, typical) : 9, 11, 14
Idle (W) : 3.2
z-height (mm) : 15
Dimensions (width x depth, mm) : 70.1 x 100.45
Weight / without brackets (g, max) : 175
Cas Temperature : 0°C to 70°C
