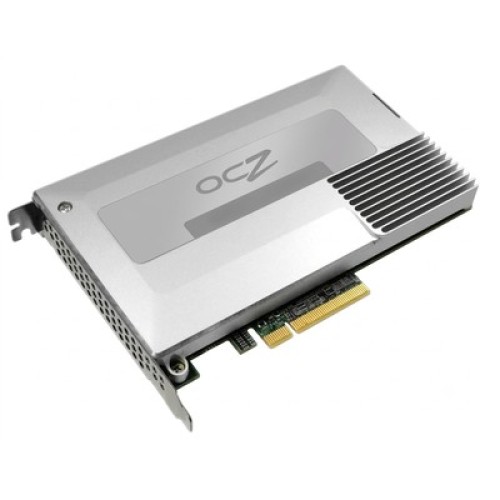

OCZ ZD4RPFC8MT310-1600 1600GB PCIe SSD
Model : Z-Drive 4500
Capacity : 1600GB
Raw Capacity : 2048GB
Write Endurance : 1300TBW min
Interface : PCI Express Gen. 2 x8
NAND Components : Multi-Level Cell (MLC)
Storage Controller : VCA 2.0 (Virtualized Controller ArchitectureTM)
Form Factor : Full-Height/Half-Length (FH/HL)
Height (mm/in) : 21.6/0.85
Width (mm/in) : 180.9/7.122
Length (mm/in) : 126.3/4.972
Weight (g/lb) : 350/0.8
Max Read : Up to 2,900 MB/s
Max Write : Up to 2,200 MB/s
Sustained Random 4K Reads : Up to 252,000 IOPS
Sustained Random 4K Writes : Up to 76,000 IOPS
Sustained Random 8K Reads : Up to 155,000 IOPS
Power Consumption : 20.3W Idle, 23.1W Active
Operating Temperature : 0°C ~ 55°C
Airflow Requirement : 300LFM (Linear Feet per Minute) at 25°C 550LFM (Linear Feet per Minute) at 40°C
Certifications : RoHS, FCC , CE, BSMI, C-TICK, VCCI, KCC, UL
MTBF : 2 million hours
Endurance Rating : Minimum of 1.3PB/td>
Data Path Protection : End-to-end data path protection at every data juncture
Data Reliability : Read Unrecoverable Bit Error Rate (UBER) 10
Data Encryption : Data compression, Data de-duplication, and AES 128bit encryption
Power Fail Protection : Full in-flight data protection for unexpected system power loss
Product Health Monitoring : Self-Monitoring, Analysis and Reporting Technology (SMART) support with enteprise attributes
Data Recovery : In case of block failures, RAID mechanisms are used to recover data
Performance Optimization : TRIM (requires OS support)
Temperature Sensor : Temperature sensing and thermal throttling without sacrificing performance under normal operation
Custom Configuration Options : Allow performance aggregation across multiple cards for increased performance
Proprietary Virtualized Controller Architecture (VCA) 2.0 : Virtualizes SSD devices into a massively parallel array of memory Consolidated SMART support
Upgradable Firmware : Field-upgradable firmware
