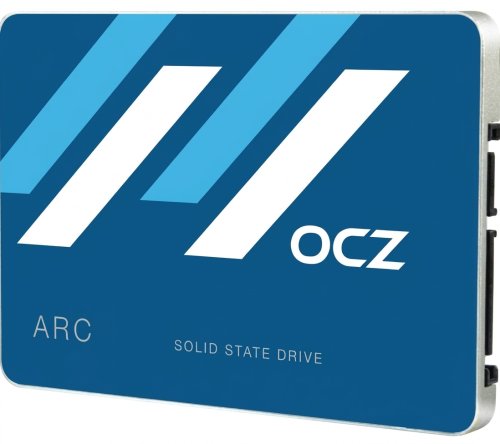

OCZ ARC100-25SAT3-240G 240GB SATA SSD
Model : ARC 100
Capacity : 240GB
Interface : Serial ATA (SATA) 6Gb/s (SATA III)
NAND Components : Toshiba A19nm Multi-Level Cell (MLC)
NAND Controller : OCZ Barefoot 3 M10
Form Factor : 2.5 inch, 7mm height
Height (mm/in) : 6.7/0.24
Width (mm/in) : 69.75/2.75
Length (mm/in) : 100.2/3.94
Weight (g/lb) : 110/0.24
Sequential Read : 480 MB/s
Sequential Write : 430 MB/s
Random Read Speed (4K, QD32) : 75,000 IOPS
Random Write Speed (4K, QD32) : 80,000 IOPS
Steady-State Random Write Speed (4K, QD32) : 18,000 IOPS
Power Consumption : Idle: 0.60W, Active: 3.450W
Operating Temperature : 0°C ~ 70°C
Storage Temperature : -45°C ~ 85°C
Shock Resistance : 1000G/0.5ms
Vibration (Non-operational) : 3.13Grms (5-800Hz)
Vibration (Operational) : 2.17Grms (7-800Hz)
Altitude (Non-operational) : -1,000ft. to 40,000ft
Altitude (Operational) : -1,000ft. to 10,000ft
Certifications : UL C/US, FCC, CE, C-Tick, KCC, BSMI, VCCI, WEEE
MTBF : 2 million hours
Endurance : Rated for 20GB/day of host writes for 3 years under typical client workloads
Data Path Protection : BCH ECC corrects up to 44 random bits/1KB
Encryption : 256-bit AES-compliant
Product Health Monitoring : Self-Monitoring, Analysis and Reporting Technology (SMART) Support
Power Requirements : Standard SATA Power Connector
Performance Optimization : TRIM (requires OS support), Idle Time Garbage Collection
