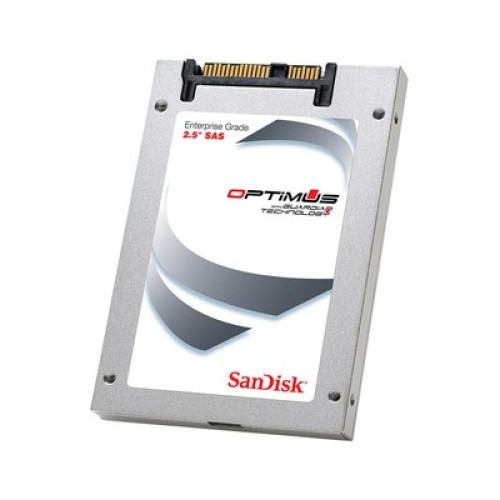

SanDisk SDLLOC9W-800G 800GB SAS SSD
Interface : SAS 6Gb/s
Interface Ports : Dual/Wide
Sequential Read/Write MB/s : Up to 500/500MB/s 1GB/s Wide Port
Random Read/Write (IOPS) : Up to 95K/40K IOPS
19nm eMLC User Capacities : 800GB
Sector Sizes : 512, 520, 528 bytes
Data Reliability (BER) : 1 unrecoverable error in 10e17 bits read
MTBF : 2.5M hours
Data Fail Recovery : F.R.A.M.E. (Flexible Redundant Array of Memory Elements)
Power Fail Recovery : EverGuard™ Technology: Backup Power Circuitry
Data Path Protection : DataGuard™ Technology
DWPD (Random Workload) : 45 DWPD
Length (mm/in) : 100.20/3.945
Width (mm/in) : 69.85/2.75
Height (mm/in) : 9.5/0.374
Vcc : 5V, - 5%/+10%
Active (Typ) : 7W
Length (max) (mm/in) : 100.45/3.954
Shock : 1000 g half-sine, 0.5 msec, 3 shocks along each axis, X, Y, Z, in each direction
Vibration : 2.17 g rms, 7-800 Hz
Operating Temperature : 0° C to 70° C
Storage Temperature : -40° C to 90° C
Humidity : 5% to 95%, non-condensing, relative humidity
Altitude : 5486.4m [18,000ft]
