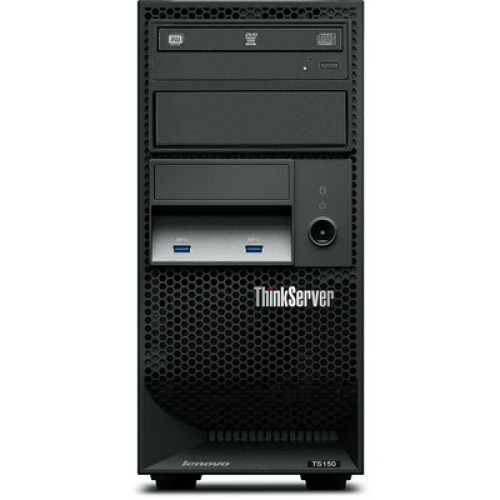

LENOVO 70UB001NEA - ThinkServer TS150, Intel E3-1225 v6 (3.30 GHz, 8
On-board graphics card : Yes
On-board graphics card model : Intel® HD Graphics P630
ECC : Yes
Internal memory : 8 GB
Internal memory type : DDR4-SDRAM
Maximum internal memory : 64 GB
Memory clock speed : 2400 MHz
Memory layout (slots x size) : 1 x 8 GB
Memory slots : 4x DIMM
Cabling technology : 10/100/1000Base-T(X)
Ethernet LAN : Yes
Ethernet interface type : Gigabit Ethernet
Operating altitude : 0 - 3048 m
Operating relative humidity (H-H) : 8 - 80%
Operating temperature (T-T) : 10 - 35 °C
Storage relative humidity (H-H) : 10 - 90%
Storage temperature (T-T) : -40 - 60 °C
BIOS type : UEFI
Noise level : 35 dB
Trusted Platform Module (TPM) : Yes
Trusted Platform Module (TPM) version : 1.2
DisplayPorts quantity : 1
Ethernet LAN (RJ-45) ports : 1
Serial ports quantity : 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 8
VGA (D-Sub) ports quantity : 1
Number of main power supplies : 1
Power supply : 250 W
Redundant power supply (RPS) support : No
Number of processors installed : 1
Processor boost frequency : 3.7 GHz
Processor cache : 8 MB
Processor cores : 4
Processor family : Intel® Xeon® E3 Family
Processor frequency : 3.3 GHz
Processor model : E3-1225V6
Processor threads : 4
Compatible operating systems : Microsoft Windows Server 2012 R2/2012 Windows MultiPoint Server 2012 Windows 10 Pro Red Hat Enterprise Linux 6.7/7.2 SUSE Linux Enterprise Server 11/12 VMware vSphere (ESXi) 5.5U3/6.0U2
Operating system installed : No
HDD capacity : 1 TB
HDD interface : Serial ATA III
HDD size : 3.5"
HDD speed : 7200 RPM
Number of HDDs installed : 2
Number of HDDs supported : 4
Optical drive type : DVD±RW
RAID levels : 0, 1, 5, 10
RAID support : Yes
Supported HDD sizes : 3.5"
Total storage capacity : 2 TB
Depth : 431 mm
Height : 375 mm
Weight : 12.5 kg
Width : 175 mm
