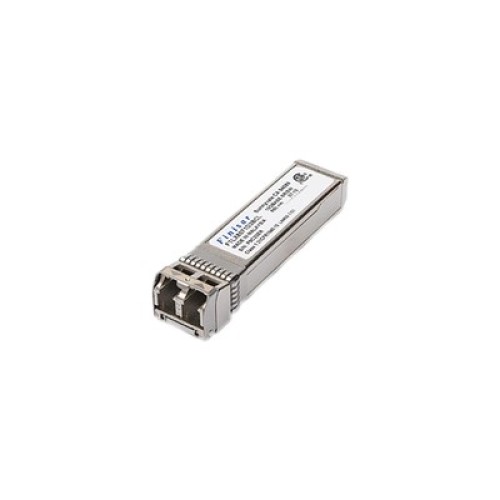

IBM FTLX8571D3BCL - 10GbE SR SFP+ transceiver
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%:
฿0
Warranty IBM:
ให้คำปรึกษา และบริการหลังการขาย
รับประกันสินค้า 3 ปี
ติดต่อสอบถามราคา พิเศษ
SALE (095-675-8034)
รับจัดหาอุปกรณ์ Server / Storage และทำ MA
Email [email protected] Office 02-460-9200
Maximum Supply Voltage : Symbol: Vcc Min: -0.5 Max: 4.0 Unit: V
Storage Temperature : Symbol: Ts Min: -40 Max: 85 Unit: °C
Case Temperature : Symbol: TA Min: 0 Max: 70 Unit: °C
Relative Humidity : Symbol: RH Min: 0 Max: 85 Unit: % Ref: 1
Supply Voltage : Symbol: Vcc Min: 3.14 Max: 3.46 Unit: V
Supply Current : Symbol: Icc Max: 250 Unit: V
Input differential impedance : Symbol: Rin Typ: 100 Unit: Ω Ref: 1
Differential data input swing : Symbol: Vinn,pp Min: 180 Max: 700 Unit: mV
Transmit Disable Voltage : Symbol: VD Min: 2 Max: Vcc Unit: V
Transmit Enable Voltage : Symbol: Ven Min: Vee Max: Vee+0.8 Unit: V
Differential data output swing : Symbol: Vout,pp Min: 300 Max: 850 Unit: mV Ref: 2.6
Data output rise time, fall time : Symbol: tr Min: 28 Unit : ps Ref: 3
LOS Fault : Symbol: V LOS fault Min: 2 Max: VccHOST Unit: V Ref: 4
LOS Normal : Symbol: V LOS norm Min: Vee Max: Vee+0.8 Unit: V Ref: 4
Power Supply Noise Tolerance : Symbol: VccT/VccR Min, Typ, Max: Per SFF-8431 Rev 3.0 Unit: mVpp Ref: 5
Optical Modulation Amplitude (OMA) : Symbol: POMA Typ: -1.5 Unit: dBm Ref: 1
Average Launch Power : Symbol: PAVE Min: -5 Max: -1 Unit: dBm Ref: 2
Optical Wavelength : Symbol: λ Min: 840 Typ: 850 Max: 860 Unit: nm
RMS Spectral Width : Symbol: Δλrms Max: 0.45 Unit: dBm
Optical Extinction Ratio : Symbol: ER Min: 3. Max: 5.5 Unit: dB
Transmitter and Dispersion Penalty : Symbol: TDP Max: 3.9 Unit: dB
Average Launch power of OFF transmitter : Symbol: POFF Max: -30 Unit: dB
Tx Jitter : Symbol: Txj Min, Typ, Max : Per IEEE 802.3ae requirements
Relative Intensity Noise : Symbol: RIN12OMA Max: -128 Unit: dB/Hz
Receiver Sensitivity (OMA) = 10.3 Gb/s : Symbol: RxSENS1 Max: -11.1 Unit: dBm
Stressed Receiver Sensitivity (OMA) = 10.3 Gb/s : Symbol: RxSENS2 Max: -7.5 Unit: dBm
Receiver OMA Sensitivity = 14.025 Gb/s : Symbol: RxSENS Max: Vee+0.8 Unit: V
Maximum Input Power : Symbol: PMAX Min: +0.5 Unit: dBm
Wavelength Range : Symbol: λC Min: 840 Max: 860 Unit: nm
Receiver Reflectance : Symbol: Rrx Max: 012 Unit: dB
LOS De-Assert : Symbol: LOSD Max: -14 Unit: dBm
LOS Assert : Symbol: LOSA Min: -30 Typ: -23 Unit: dBm
LOS Hysteresis : Min: 0.5 Unit: dB
Bit Rate : Symbol: BR Min: 9.95 Max: 10.5 Unit: Gb/sec Ref: 1
Bit Error Ratio : Symbol: BER Max: 10^-12 Ref: 2
Maximum support distances Fiber type 62.5µm : 160 MHz-km Symbol: Lmax Max: 26 unit: m OM1 200 Mhz-km Symbol: Lmax Max 33 unit: m
Maximum support distances Fiber type 50 µm : 400 MHz-km Symbol: Lmax Max: 66 unit: m OM2 500 Mhz-km Symbol: Lmax Max 82 unit: m OM3 2000 Mhz-km Symbol: Lmax Max 82 unit: m
Case Operating Temperature : Symbol: Top Min: 0 Max: 70 Unit: °C
Internally measured transceiver temperature : Symbol: DDTemperature Min: -3 Max: 3 Unit: °C
Internally measured transceiver supply voltage : Symbol: DDVoltage Min: -100 Max: 100 Unit: mV
Measured TX bias current : Symbol: DDBias Min: -10 Max: 10 Unit: % Ref: 1
Measured TX output power : Symbol: DDTx-Power Min: -2 Max: 2 Unit: dB
Measured RX received average optical power : Symbol: DDRx-Power Min: -2 Max: 2 Unit: dB
