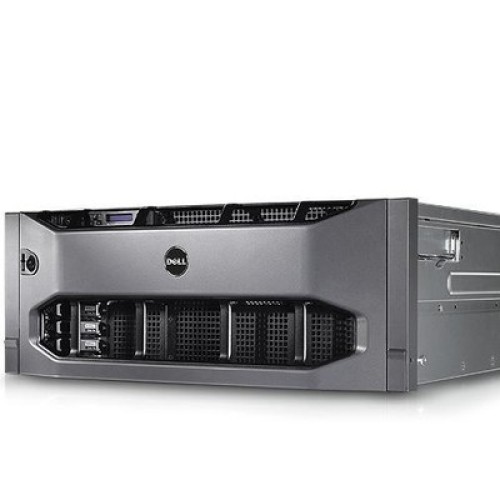

Dell PowerEdge R910 4U Rackmount Server
Alt MPNs : R910
Form Factor : 4U rack
Processor Sockets : 4
Front Side Bus or HyperTransport : Intel QuickPath Interconnect (QPI)
Chipset : Intel E7510
I/O Slots : Up to 10 PCIe 2.0 slots + 1 storage slot: Standard: 7 PCIe 2.0 slots (2 x4, 4 x8, 1 x16) Two x4 slots Four x8 slots One x16 slot Optional: 10 PCIe Gen2 Six x4 slots Four x8 slots One storage x8 slot
Drive Bays : Up to sixteen hot-plug 2.5” SATA SSD, SAS, nearline SAS, or SATA drives
Maximum Internal Storage : Up to 16TB
Hard Drives (Not Included) : Hot-plug hard drive options: 2.5” SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) Solid state storage cards: Fusion-io® 160GB ioDrive PCIe solid state storage card Fusion-io 640GB ioDrive Duo PCIe solid state storage card Fusion-io 320GB ioDrive Mono PCIe solid state storage card Fusion-io 640GB ioDrive Mono PCIe solid state storage card Fusion-io 1.28TB ioDrive Mono PCIe solid state storage card
Remote Management : iDRAC6 Express
Systems Management : Dell™ OpenManage™ BMC, IPMI 2.0 compliant Unified Server Configurator Lifecycle Controller enabled through optional iDRAC6 Express, iDRAC6 Enterprise, and vFlash media Microsoft® System Center Essential (SCE) 2010 v2
Embedded Hypervisor : Optional Dual-Media Redundant Hypervisor
Rack Support : ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks)
Operating Systems : Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V®) Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Microsoft Windows® HPC Server 2008 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux® Virtualization options: VMware® vSphere® ESX™ and ESXi™ Citrix® XenServer® Red Hat Enterprise Virtualization®
Featured Database Application : Microsoft SQL Server® solutions Oracle® database solutions
