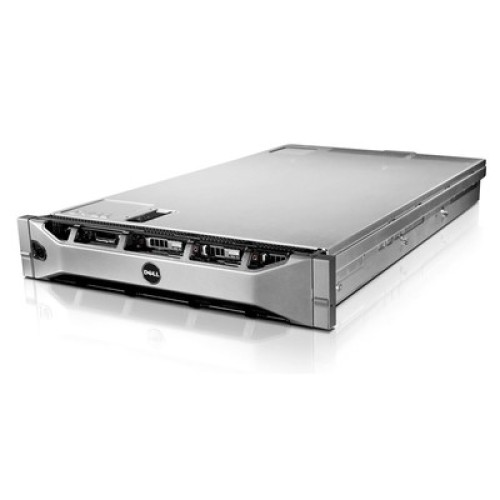

Dell PowerEdge R815 2U Rackmount Server
Alt MPNs : R815
Form Factor : 2U rack
Processor Sockets : 4
Front Side Bus or HyperTransport : Hyper-Transport Links
Chipset : AMD SR5650, SR5670 and SP5100
I/O Slots : 6 PCIe slots + 1 Storage Slot: Five x8 slots (Three with x16 connectors) One x4 slot (with x8 connector) One x4 Storage slot (with x8 connector)
Drive Bays : Up to Six 2.5” hot-swappable SAS, SATA, or SSD drives
Maximum Internal Storage : 3TB
Hard Drives (Not Included) : 2.5” SATA (7.2K RPM): 160GB, 250GB, 500GB 2.5” Near Line SAS (7.2K RPM): 500GB 2.5” 6Gbs SAS (10K): 300GB, 600GB 2.5” SAS (10K RPM): 146GB, 300GB 2.5” SAS (15K RPM): 73GB, 146GB 2.5” SATA SSD: 50GB, 100GB
Remote Management : iDRAC6 Express (standard) iDRAC6 Enterprise and vFlash (upgrade optional)
Systems Management : BMC, IPMI2.0 compliant Dell™ OpenManage™ featuring Dell Management Console Unified Server Configurator Lifecycle Controller enabled: iDRAC6 Express, optional iDRAC6 Enterprise, and vFlash
Rack Support : Sliding ReadyRails™ mounting interface for 4-post racks, static ReadyRails™ mounting interface for 4-post and 2-post racks, and optional support for cable management arm
Operating Systems : Microsoft® Windows Server® 2008 SP2, x86/x64 (x64 includes Hyper-V™) Microsoft® Windows Server® 2008 R2, x64 (includes Hyper-V™ v2) Microsoft® Windows® HPC Server 2008 Novell® SUSE® Linux® Enterprise Server Red Hat® Enterprise Linux® Sun® Solaris™ Optional Embedded Hypervisors: Citrix® XenServer® VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)
Featured Database Application : Microsoft SQL Server® solutions Oracle® database solutions
