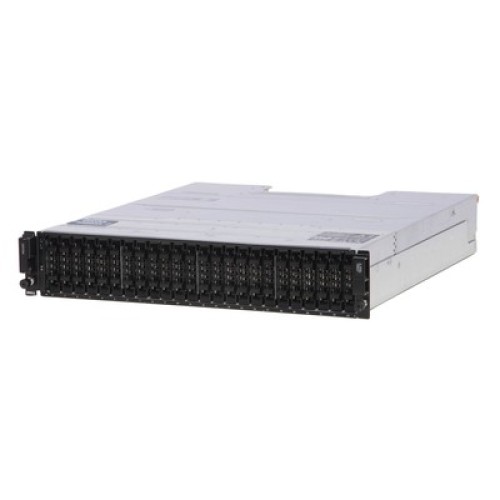

Dell MD1420 SAS 24-Bay Storage Array
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%:
฿0
Warranty DELL:
ให้คำปรึกษา และบริการหลังการขาย
รับประกันสินค้า 3 ปี
ติดต่อสอบถามราคา พิเศษ
SALE (095-675-8034)
รับจัดหาอุปกรณ์ Server / Storage และทำ MA
Email [email protected] Office 02-460-9200
Drive performance and capacities : 2.5” NL-SAS 6Gb HDD (7.2K): 500GB, 1TB 2.5” NL-SAS 12Gb HDD (7.2K): 2TB 2.5” SAS 6Gb HDD (10K): 300GB, 600GB, 1.2TB, 1.8TB 2.5” SAS 6Gb HDD (15K): 300GB, 600GB 2.5” SAS 12Gb SED (15K): 600GB 2.5” SAS 12Gb SSD: 200GB, 400GB, 800GB (WI); 200GB, 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
Maximum capacity per enclosure : Up to 48TB when using 24 x 2TB NL-SAS 2.5” HDDs
Expansion capabilities : PERC H830 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure
Unified mode : Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 (4 enclosures per port, single path) Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling)
EMM : 2 EMM provide redundant enclosure management capability
RAID levels : 0, 1, 5, 6, 10, 50, 60
Connectivity : 4 mini-SAS HD connector for connection to the host or expansion
Service management : USB mini-B connector (for factory use only)
Wattage – AC and DC power : AC – 600W; DC – 700W
Host heat dissipation : AC – 2047BTU/hr; DC – 2388BTU/hr
Input voltage range : 100-240V AC, auto-sensing; 48V DC
Frequency range : 50/60Hz
Amperage : 8.6A at 100V, 4.3A at 240V
Supported continuous consumption : Up to 1.2A at +5V Up to 0.5A at +12V
Rack support : Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Height x width x depth : 8.7 cm (3.39”) x 48.2 cm (18.8”) x 54.1 cm (29.1”)
Weight : 24.2 kg (53.35 lb) (maximum configuration) 8.8 kg (19.4 lb) (empty)
Temperature : Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
Relative humidity : Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour Storage: 5% to 95% (non-condensing)
Altitude : Operating: -16 to 3048 m (-50 to 10,000 ft) Storage: -16 to 10,600 m (-50 to 35,000 ft)
