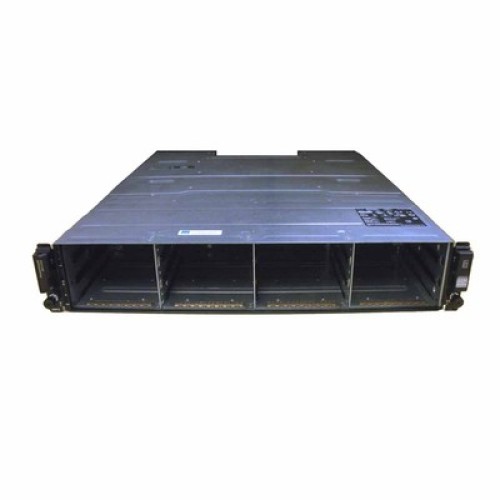

Dell MD1200 SAS Storage Array
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%:
฿0
Warranty DELL:
ให้คำปรึกษา และบริการหลังการขาย
รับประกันสินค้า 3 ปี
ติดต่อสอบถามราคา พิเศษ
SALE (095-675-8034)
รับจัดหาอุปกรณ์ Server / Storage และทำ MA
Email [email protected] Office 02-460-9200
Drives : Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, and 15K rpm and SAS Solid State Drives (SSDs)
Drive Performance and Capacities : 2.5" SAS HDDs in 3.5" carrier, 10,000 RPM 6Gb/s SAS drives available in 300GB and 600GB 2.5" SAS SSDs in 3.5" carrier, 3Gb/s SSD available in 149GB
Maximum Capacity (per enclosure) : 24TB using twelve (12) 2TB 7,200 RPM 6Gb/s SAS disk drives
Expansion Capabilities : PERC H800 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port)
Unified Mode : Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H800 (4 enclosures per port, single path)
Split-Mode/Dual-Host Access : Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 though 5 and a separate connectivity to drives 6 through 11
Enclosure Management Modules (EMM) : 2 EMM provide redundant enclosure management capability
RAID Levels : PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50, and 60
Host Connectivity : 1 SAS (SFF 8088) IN connector for connection to the host
Expansion Connectivity : 1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure
Service Management : 1 6-pin UART mini-DIN connector (for factory use only)
Wattage : 600 W
Host Heat Dissipation : 188 W
Input Voltage Range : 100-240 VAC, auto-sensing
Frequency Range : 50/60 Hz
Amperage : 8.6 A at 100 V, 4.3 A at 240 V
Supported Continuous Consumption : up to 1.16 A at +5V
Height x Width x Depth : 8.7cm (3.39 inches) x 48.2cm (18.8 inches) x 59.4cm (23.17 inches)
Weight : 28.39 kg (62.6 lb) (maximum configuration)
Temperature : Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
Relative Humidity : Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Altitude : Operating: -16 to 3048 m (-50 to 10,000 ft)
