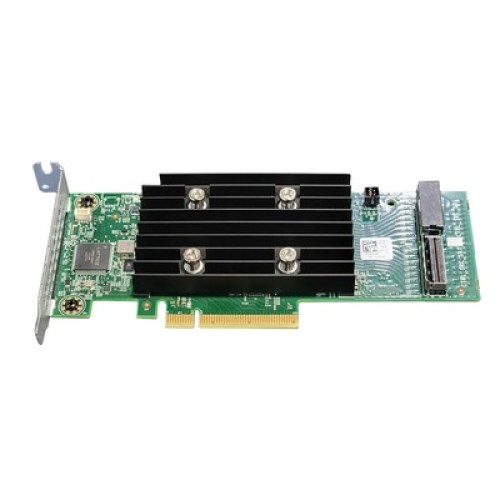

DELL 9DYP8 - H345 12GB SAS PCI-e 9DYP8
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%:
฿0
Warranty DELL:
ให้คำปรึกษา และบริการหลังการขาย
รับประกันสินค้า 3 ปี
ติดต่อสอบถามราคา พิเศษ
SALE (095-675-8034)
รับจัดหาอุปกรณ์ Server / Storage และทำ MA
Email [email protected] Office 02-460-9200
Solution Provided : Low cost, entry RAID and Non-RAID (Pass-Through) solution for high-density servers (1U or 2U) and workstations with the flexibility to use both SATA and SAS HDDs, SSDs, and pass-through drive configurations.
Form Factors : PCIe Adapter Card (HHHL) & Custom (Front)
Connectors : Adapter Card – Low Profile Slimline x8 (Defined in SFF-8654)
Maximum Number of Physical devices : Non-RAID (JBOD Mode): up to 32 RAID 0: 32 per volume RAID 1: 2 per volume plus hot pare RAID 10: 32 per volume
Host bus type : 8-lane, PCI Express 3.0 compliant
Data transfer rates : Up to 12Gbps per port
SAS controller : LSI SAS3416
Key RAID data protection features : RAID levels 0, 1, 101 Selectable logical drive as boot drive Consistency check Support for TRIM/UNMAP commands for SAS/ SATA SSDs in Pass-Thru Native command queuing Staggered spin-up for SATA drives Hot-plug support Global hot-spare support Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Automatic rebuild of hot-spare drives Auto resume during array rebuild Greater than 2TB logical drive support Soft bad block management Error recovery support S.M.A.R.T. support T10-DIF Support Physical disk power management (Dimmer Switch™) 4K Native Sector Support
RAID management : CTRL-R Dell EMC OpenManage Storage Services PERC CLI Additional Management: UEFI (HII) CEM
Environments : Operating: 0°C to 65°C 5 to 90% non-condensing Storage: -45°C to 105°C 5 to 90% non-condensing
PCI card type : 3.3V add-in card
PCI voltage : +12V
LED indicators : ±10% Internal Activity/Fault per x16 port: Heartbeat
Operating Systems : Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux Ubuntu Server SUSE Linux Enterprise Server VMware ESXi
Brackets : Full-height, low-profile
