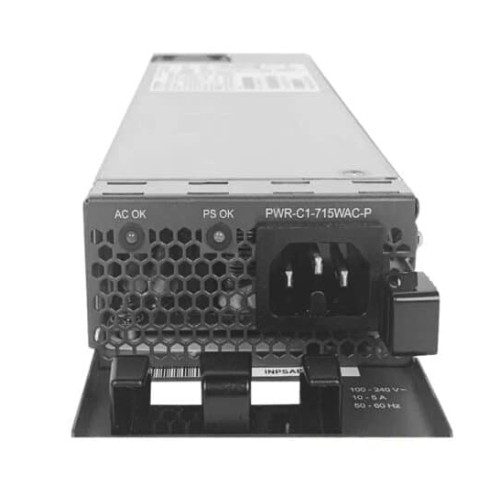

CISCO PWR-C1-715WAC/2 - 715W AC Config 1 Secondary Power Supply
Operating temperature : 23 to 113° F -5 to 45° C
Storage temperature : -40 to 158° F -40 to 70° C
Relative humidity : 10 to 95% (noncondensing)
Altitude : Up to 10,000 ft (3049 m)
Weight : 2.8 lb 1.3 kg
Dimensions : 1.38 x 10.22 x 3.25 in. 3.5 x 26 x 8.3 cm Note Dimensions shown exclude the attached power cord retainer (AC power supplies) or the extraction handle (DC power supplies), which measures 1.55 in. (3.9 cm).
Maximum output power : 715 W
Input voltage range and frequency : 715 W, 100 to 240 VAC (autoranging), 50 to 60 Hz
Input current : 10-5 A
Output ratings : -56 [email protected] A
Total input BTU : 2742 Btus per hour, 804 W
Total output BTU : 2438 Btus per hour, 765 W
Designed for : Catalyst AC Power 12-Port, 24-Port, and 48-Port Switches
