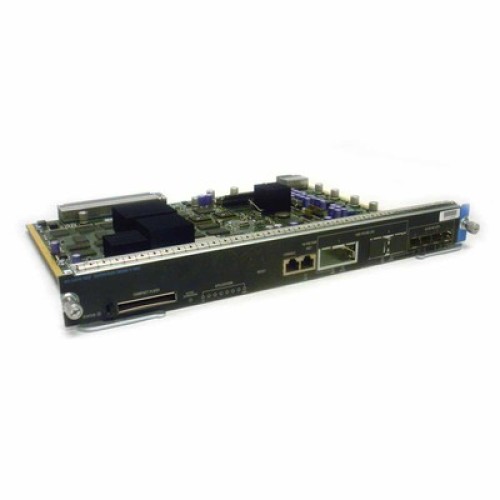

CISCO WS-X4516-10GE - Cisco Catalyst 4500 Supervisor V-10GE, 2x10GE
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%:
฿0
Warranty CISCO:
ให้คำปรึกษา และบริการหลังการขาย
รับประกันสินค้า 3 ปี
ติดต่อสอบถามราคา พิเศษ
SALE (095-675-8034)
รับจัดหาอุปกรณ์ Server / Storage และทำ MA
Email [email protected] Office 02-460-9200
Redundant Capable : Yes Cisco Catalyst 4507R or 4507R-E or 4507R+E Cisco Catalyst 4510R or 4510R-E or 4510R+E
Active Supervisor Uplinks in Redundant Mode : Up to 4 Gigabit Ethernet (2) 10 Gigabit Ethernet
Active Supervisor Engine Uplink (Nonredundant Mode) : 4 Gigabit Ethernet (2) 10 Gigabit Ethernet
Twin Gig Converter Support : No
Uplink Optic Types : SFP (Gigabit Ethernet) or X2 optics (10 Gigabit Ethernet ports
SSO/NSF/ISSU : Yes
Qos Hardware Entries : 32,000
Policers : 8,000 input 8,000 output
Hierarchical Policers : Yes microflow policing with onboard NetFlow
Number of Tx Queues : 4
Max Tx Queue Size : 2336 packets per tx queue
Dynamic Queue Sizes : No
Configurable Classification : No
Match IP on MAC Header : No
Modular Qos Compliant : No
DBL: Congestion Avoidance Feature : Yes
QoS Sharing : Supported on all ports
Shaping : Yes per tx queue
Broadcast Suppression : Hardware for all ports
Multicast Suppression : Hardware for all ports
USB Drive Support : No
Compact Flash Support : Yes 64MB or 128 MP options
FAT File System Support : No
SPAN : 2 ingress and 4 egress
Security Entries : 32,000
NAC/DHCP Snooping Entries : 6000/6000
uRPF : No
Control Plane Policing : Yes in hardware
802.1X : Yes
802.1X Extensions : Yes
IP Source Guard, Dynamic ARP Inspection, DHCP Snooping : Yes
Network Admission Control : Yes
Daughter Card : Not required (integrated into supervisor)
Flow-Table Size : 85,000
Aggregate Policers : 8000 ingress; 8000 egress
User-Based Rate-Limiting Profiles : 512
User-Based Rage-Limiting Flows : 85,000
Regulatory Compliance : CE marking
Safety : UL 60950CAN/CSA-C22.2 No. 60950 EN 60950 IEC 60950 TS 001 AS/NZS 3260
EMC : FCC Part 15 (CFR 47) Class A ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI Class A ETS 300 386 EN 55022 EN 55024 EN 61000-6-1 EN 50082-1 EN 61000-3-2 EN 61000-3-3
Industry EMC, Safety, and Environmental Standards : GR-63-Core Network Equipment Building Systems (NEBS) Level 3 GR-1089-Core Level 3 ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 (pending) ETS 300 019 Stationary Use Class 3.1 ETS 300 386
