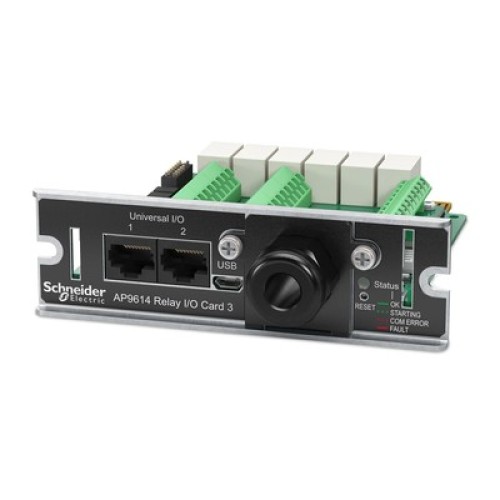

Dry Contact I/O card for APC SmartSlot UPS with 6 output relays and 4 input contacts
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%:
฿0
Warranty APC:
ให้คำปรึกษา และบริการหลังการขาย
รับประกันสินค้า 3 ปี
ติดต่อสอบถามราคา พิเศษ
SALE (095-675-8034)
รับจัดหาอุปกรณ์ Server / Storage และทำ MA
Email [email protected] Office 02-460-9200
Output Relays: 6 configurable output relays with dry contact switching
Input Contacts: 4 opto-isolated input contacts (2 additional non-isolated via optional AP9810 accessory)
Power Supply: Self-powered via SmartSlot interface - no external power required
Rated Voltage: 24V DC
Line Rated Current: 0-200 mA
UPS Compatibility: APC SmartSlot UPS devices with output rated ?160kVA and available SmartSlot
Management Interface: Dynamic Web UI for configuration and monitoring of relays and input contacts
Environmental Sensor Support: Monitors external environmental sensors via universal I/O ports
Action Triggering: Configure automated actions based on status changes or UPS events via Web UI
Certifications: Compliant with applicable electrical and safety standards per Schneider Electric
Included Accessories: UPS Management Adapter ¦ User Manual ¦ USB Cable
Product Type: Dry Contact I/O Management Card - SmartSlot Interface
Form Factor: 0U non-rack-mountable card - compact SmartSlot module
Physical Dimensions: Height: 1.5 in (3.8 cm) ¦ Width: 4.8 in (12.1 cm) ¦ Depth: 5.04 in (12.8 cm)
Weight: 0.44 lb (0.20 kg) / 7.04 oz (199.58 g)
Universal I/O Ports: 2 universal I/O ports supporting AP9335T/TH and AP9810 dry contact accessories
USB Interface: USB cable connector for PC-based Web User Interface access
Cable Length: 0.522 ft (0.159 m) USB connection cable
Operating Temperature: 32-104°F (0-40°C)
Operating Altitude: 0-10,000 ft (0-3,048 m)
Storage Temperature: 5-149°F (-15-65°C)
Storage Altitude: 0-50,000 ft (0-15,240 m)
