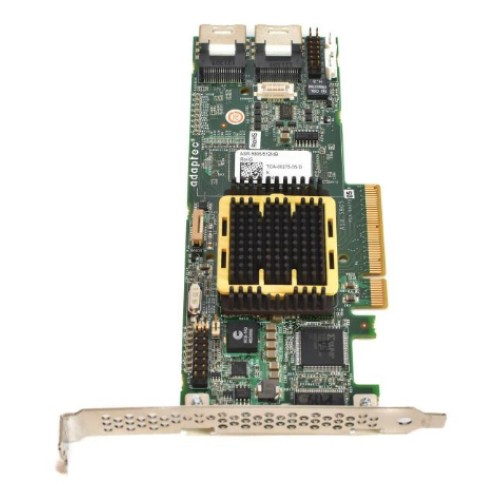

Adaptec 2244300-R 512MB PCIe SAS SATA RAID Controller
Model Number : 5805
Form Factor : MD2 - Low Profile
Ports : 8 Internal
Connectors : 2 SFF-8087 (int.)
Bus Interface : 8-Lane PCIe Gen1.1
Processor : 1.2 GHz Dual Core
Cache : 512MB
Operating System : Windows 7 Windows XP Server 2003/2008 Vista Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) SCO OpenServer UnixWare Sun Solaris 10 x86 FreeBSD
Physical Dimensions : 2.5"H x 6.6"L (167mm x 64mm)
Operating Temperature : 0°C to 55°C (with 200 LFM airflow; without battery) 0°C to 40°C ( with 200 LFM airflow; with battery)
Operating Voltage : 0.45A @ 3.3V 1A @ 12v
Regulatory Certification : CE, FCC, UL, C-tick, VCCI
MTBF : 873,402 hours at 40°C
Accessories : Adaptec Battery Module 800 (2248000-R) Adaptec Battery Module 800T (2263800-R)
